1.ForkliftThe forklift used to lift the empty molds pallet to the unloading machine ,and lift concrete filled molds pallet to the drying area/room.2.Auto unloading machineRelease the molds ……
Introduction
1.Forklift
The forklift used to lift the empty molds pallet to the unloading machine ,and lift concrete filled molds pallet to the drying area/room.
2.Auto unloading machine
Release the molds pallet one by one on the transportation belt.adopt the pneumatic driving technology,compressor required to supply the air to the unloading machine.Frequency motor driving,stacking speed adjustable .
3.Auto Spray Machine
It has 3 function:
1>Dust remove from the mold surface
2>Color Painting to beautify the artificial stone ,improve the efficiency & labor numbers.
3>Spray the mold oil to achieve better mold release .
Working process:When the molds arrive the position,first two spray gun start working to paint the air to move the dust away ,the middle gun start paint the spot color when mold arrive its area,the the last two spray gun do the full color painting ,all will be controlled by the sensor and cabinet computer.and all data can be adjusted before production start.

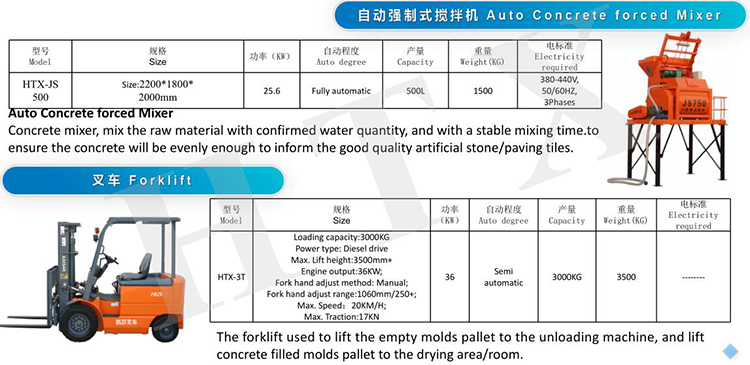

4.Auto Concrete forced Mixer
Concrete mixer,mix the raw material with confirmed water quantity,and with a stable mixing time.to ensure the concrete will be evenly enough to inform the good quality artificial stone/paving tiles.
Auto Dosing Machine

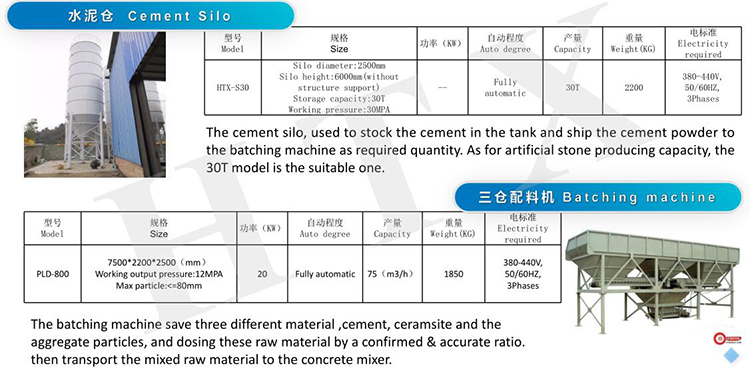

It include the mixing hopper,concrete doser with pneumatic control and storage silo.
| Name | Model | Specification | Size (mm) | Power (Kw) | Capacity (m2/day) | Weight (Kg) |
| Artificial stone production line | HTX-P-01 | Hydraulic driving;Auto feeding; vibrating and timing feeding | 7000*1000*1800 | 12.7 | 800-1000 | 2000 |
| Artificial stone production line | HTX-P-02 | Chain drived;Auto feeding,auto vibration | 8000*1100*1600 | 4.05 | 600-800 | 1500 |
Wet concrete dosing system, is suitable for different silicone molds, rubber molds and plastic molds, size range from 200*200mm to 1500*1500mm, available for producing the artificial stone both for wall and floor paving, 3D Wall panel, terrazzo floor tile, etc .
Main Features
1.More efficient production,can achieve 800M2 Per day(8hrs)
2.Labors saving for production,5-6 workers needed only,can largely reduce the labor cost of factory output.
3.Multiple function for production,it include unloading,painting ,concrete dosing and stacking ,and available usage for plastic molds of floor tile and terrazzo tile,silicone molds for artificial stone etc.
4.The auto spray painting machine,has function for mold oil painting,stroll color painting and full color painting,also it can be turned on/off separately.
